Stable Audio 3 medium: one TPU chip against an L4, module by module

Stable Audio 3 medium is a 1.4 B DiT plus a 426 M SAME-L decoder and a 282 M T5Gemma text encoder — 2.16 B parameters that the reference runtime ships for CUDA only. This report profiles the JAX port of that model on one Colab TPU v6e-1, and then runs the same port and the official PyTorch runtime on the same L4 so the TPU number has a frame of reference on both sides: how fast is our port against the thing it is porting, and how much does the accelerator contribute.

Every latency below is a warm median with the device synchronised around the region (jax.block_until_ready() / torch.cuda.synchronize()); XLA compile, the first post-compile call and the 10.4 GB of weight staging are reported separately from the steady-state number. One prompt, one seed, 8 steps, batch 1, 120 s of audio (T = 1358 latents) unless a row says otherwise.

1. What was run

Three things about that table change how the numbers must be read, and none of them are in our favour:

• Chunked vs unchunked decode. The reference's shipped medium config decodes in chunks; our port decodes the whole 1358-latent sequence in one call. The decode comparison is therefore a comparison of two different computations, and is labelled as such.
• fp16 + Flash Attention vs bf16. Both JAX runs are bf16 with an einsum SDPA, which is what the port ships; the torch run is the reference's own default. The dtype lever moves latency on both sides, so cross-framework ratios are of ports-as-shipped, not of dtypes-as-matched.
• One chip. The v6e-1 run is a single chip with no sharding — the port has no mesh. Nothing here is a scale-up result.

medium was also, until this run, not wired end to end in the port: pipeline.render hardcodes the SAME-S decoder, so generate(cfg=MEDIUM) does not raise — it silently returns correctly-shaped, wrong audio. These runs compose the medium path from the module functions and call same_l.decode directly. That gap is a real defect in the port and is recorded as one.

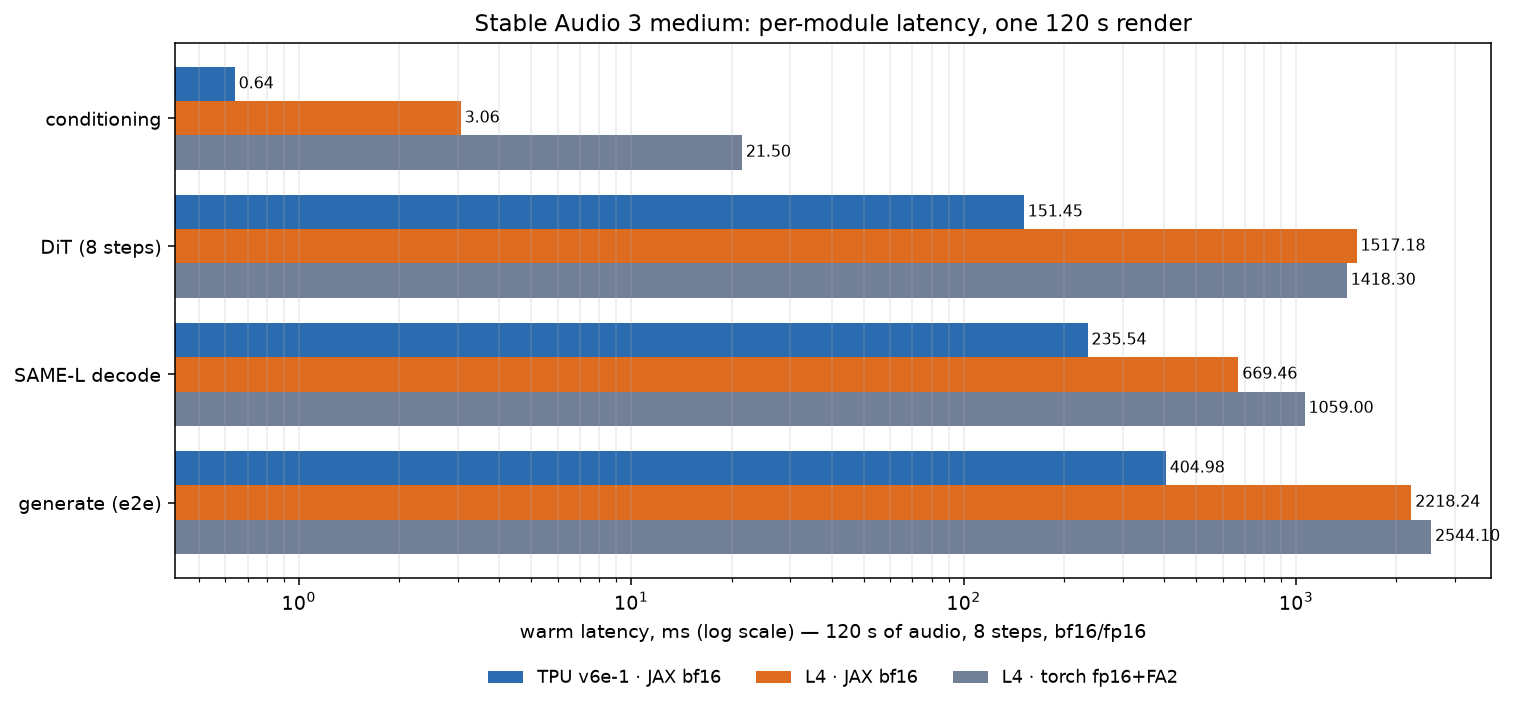

2. The budget at 120 seconds

Two facts dominate. First, the TPU's DiT is 10× the L4's for identical JAX source (151 vs 1517 ms), which is a larger gap than the chips' nominal throughput difference and points at bandwidth and fusion rather than arithmetic alone. Second, the SAME-L decoder costs more than the whole DiT on the TPU (236 vs 151 ms — 1.56×), where on the L4 it is 44 % of the DiT in JAX and 75 % in torch. The decoder is where the TPU's advantage is smallest (4.5× against torch, versus 9.4× for the DiT): it is a conv-and-scan structure with small widths, which suits neither the L4's tensor cores nor the TPU's wide matmuls.

The text encoder is invisible on TPU (0.64 ms) and free on both GPUs relative to the DiT, but the spread there is the largest in the table — 33× between the TPU and torch — because it is a small, latency-bound, host-issued stage.

3. How good is 405 ms? Measured against the modelled floor

The roofline report (klein-sa3-tpu-roofline, source flicker/docs/roofline.md) modelled SA3 medium module by module but could not measure it: its §1 states plainly that "medium has never been loaded on any hardware", and every SA3 wall time there is tagged derived. This run closes that loop. The model's own functions — sa3_dit, sa3_codec, t5_trunk — are imported and divided by the measured times (scripts/roofline_medium.py), so the two sides cannot drift apart.

Two rates, because they answer different questions. 918 TFLOP/s is v6e-1's bf16 datasheet peak, which is what a "% of peak" claim is usually measured against. 380.1 TFLOP/s is what a warmed 4096³ bf16 GEMM actually reaches on one v6e-1 chip — 41.4 % of datasheet. Scoring against the second removes the hardware's shortfall and leaves the model's, which is the only way "is this module efficient?" is a fair question.

The DiT is close to its roofline; the codec is not. The 24-block DiT runs at 217 TFLOP/s — 57 % of the rate the chip reaches on a plain GEMM, 1.75× its achievable floor. That is a well-optimised module, and closer than the roofline's own klein DiT measurement on an L4 (2.77× its floor). The SAME-L decoder runs at 79 TFLOP/s — 21 % of the same rate, 4.83× its floor. Same chip, same run, same dtype: the codec sits 2.8× further from its floor than the DiT, and is 1.56× the DiT's wall time while doing 44 % less work.

That is what the model predicted without knowing the hardware. Roofline §6 classified four SA3 rows as memory-bound on v6e — cross to_q/to_kv (AI 367), cross attention (444), cross to_out (499) and mlp (527), all under the 560 ridge — and the codec's qk DyT + rope at an arithmetic intensity of 0.8, moving 10.2 GB of traffic for 8.5 GFLOP. Roofline §7 then gave the calibration rule: multiply a floor by 2.5 for a GEMM-dominated module and 3–6 for a convolutional or small-shape one. Measured: DiT 1.75×, codec 4.83×. The model's shape survived contact with a chip it had never run on.

One caveat on the direction of the comparison: these GFLOPs are the model's counts, not hardware counters, so "achieved TFLOP/s" inherits its conventions (MAC = 2 FLOPs, 4·d + 5 per attention score, both differential SDPAs counted). The ratios between modules are robust; the absolute percentages are only as good as the count.

What this changes about the plan. The gap is not uniform, so a single optimisation cannot close it: 1.75× in the DiT, 4.83× in the codec. The codec's deficit is a memory problem — its traffic is 35.9 GB of the clip's 112.8 GB — and int8 attacks it twice, halving both the weights and the traffic. The DiT's own gap is concentrated in one modelled row: cross to_q/to_kv recomputes K/V from the 257 context tokens in every block of every step — 906 MB of weights, 24 times per step, 8 steps per clip, for a tensor that never changes. Roofline §8 calls hoisting it "the one change in either model that is free", and the port already flags it (sa3jax/dit.py, deferred to M8).

4. Idle device time

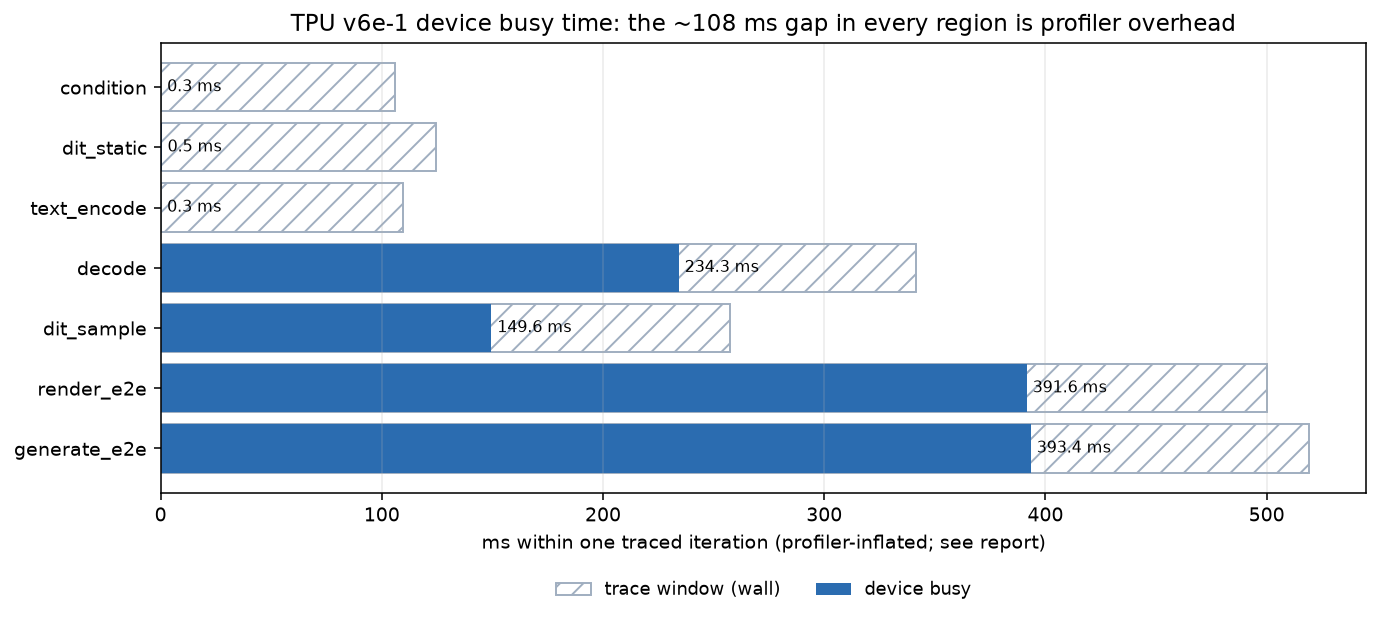

The user-visible question "how much of the request is the accelerator idle?" is answered from the XProf capture, not from arithmetic: the .xplane.pb records /device:TPU:0 and /host:CPU as separate processes, so the union of the device process's spans is the TPU's busy time.

The busy column is a cross-check, not a new measurement. Device busy lands within 1.5 ms of the harness's warm median in every region that does device work — DiT 149.6 vs 151.4, decode 234.3 vs 235.5, render 391.6 vs 393.9, generate 393.4 vs 405.0 — from a different instrument. Where the two disagree is the point: the trace's device time is ~1 % below the harness, and for generate it is 11.6 ms below, which is precisely the host-side work.

The idle reading needs one correction before it means anything. Every region, including ones with 0.3 ms of device work, shows ~108 ms of "idle" — that is the profiler's own start_trace (13 ms) and stop_trace (93 ms), a constant floor that has nothing to do with the model. Subtract it and the picture is unambiguous: during render_e2e the TPU is busy 391.6 ms of a ~392 ms window, i.e. **~100 % device-bound**; the sampler and decoder jits leave essentially no bubble. The end-to-end generate gives up **~12–18 ms (3–4 %)** to host-side work, and it is concentrated in one place — the eager dit.prepare_static (9.4 ms, which contains a device→host sync to validate local_add_cond) plus postprocess. At 120 s that is the entire optimisable idle budget: there is no hidden stall to find, and the next win is making prepare_static device-resident or hoisting it out of the request, worth at most ~4 %.

5. The traces

Every figure below comes in three depths: the stage (one whole iteration), a zoom (a 500 µs window), and a tight crop (50 µs). The depths are set in microseconds rather than as a fraction of the stage because these tracks are far denser than they look — the DiT carries 56 369 device events in 149 ms, a median op of 0.3 µs, about 600 ops per millisecond. A 20 ms window still renders every label as a sub-pixel sliver; 50 µs is what leaves each slice tens of pixels wide, which is the width Perfetto needs before it draws text at all.

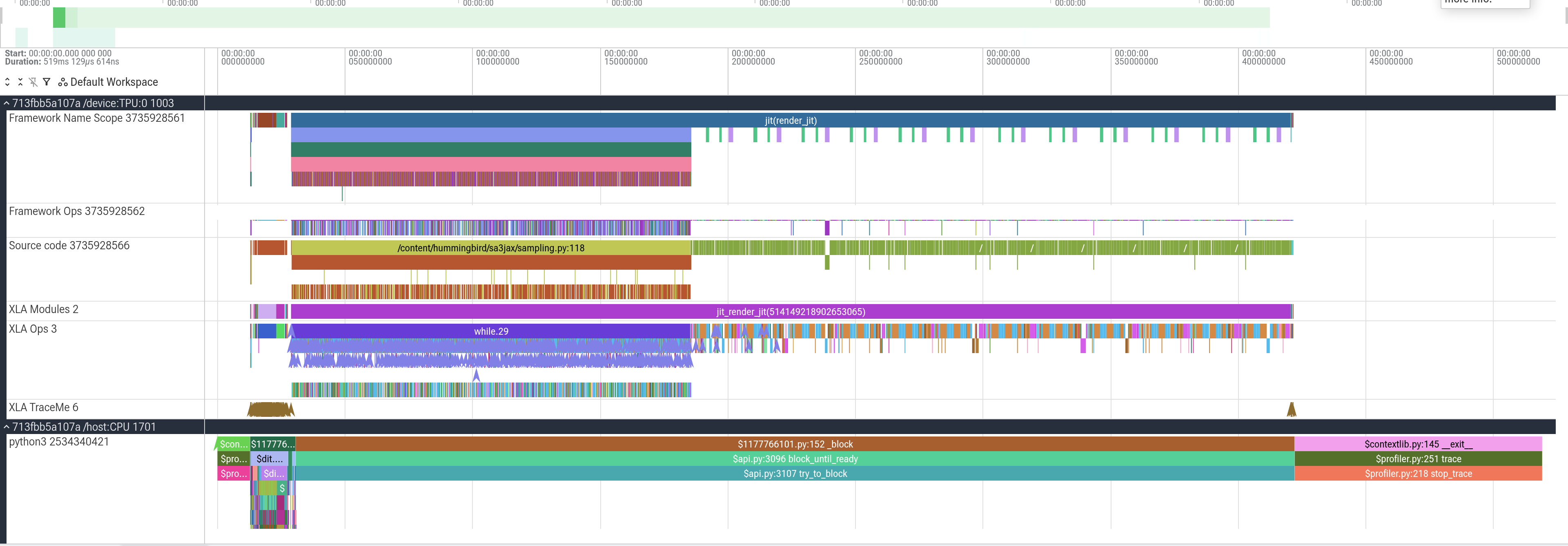

The whole 120 s request, everything resident. jit_render_jit is the shipping single jit boundary (sampler + decoder); the host process below it is the block_until_ready wait.

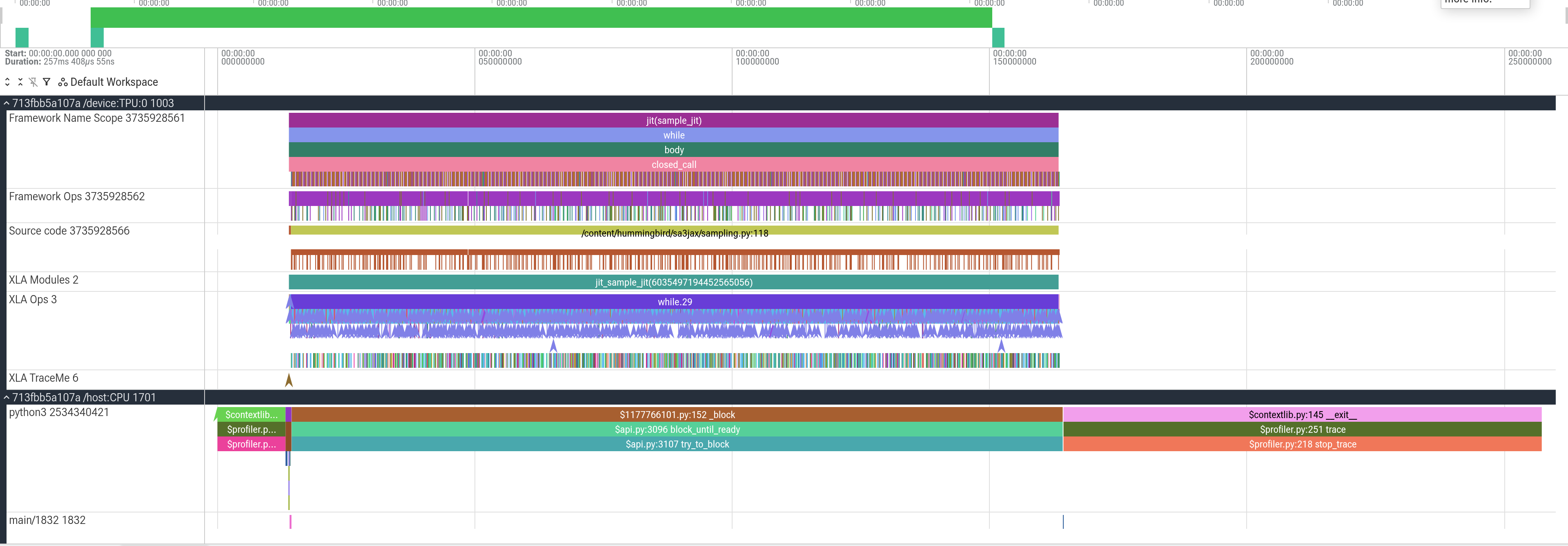

The 8-step DiT scan. The while.29 loop is the Euler pingpong sampler and each narrow slice inside it is one of the 24 blocks.

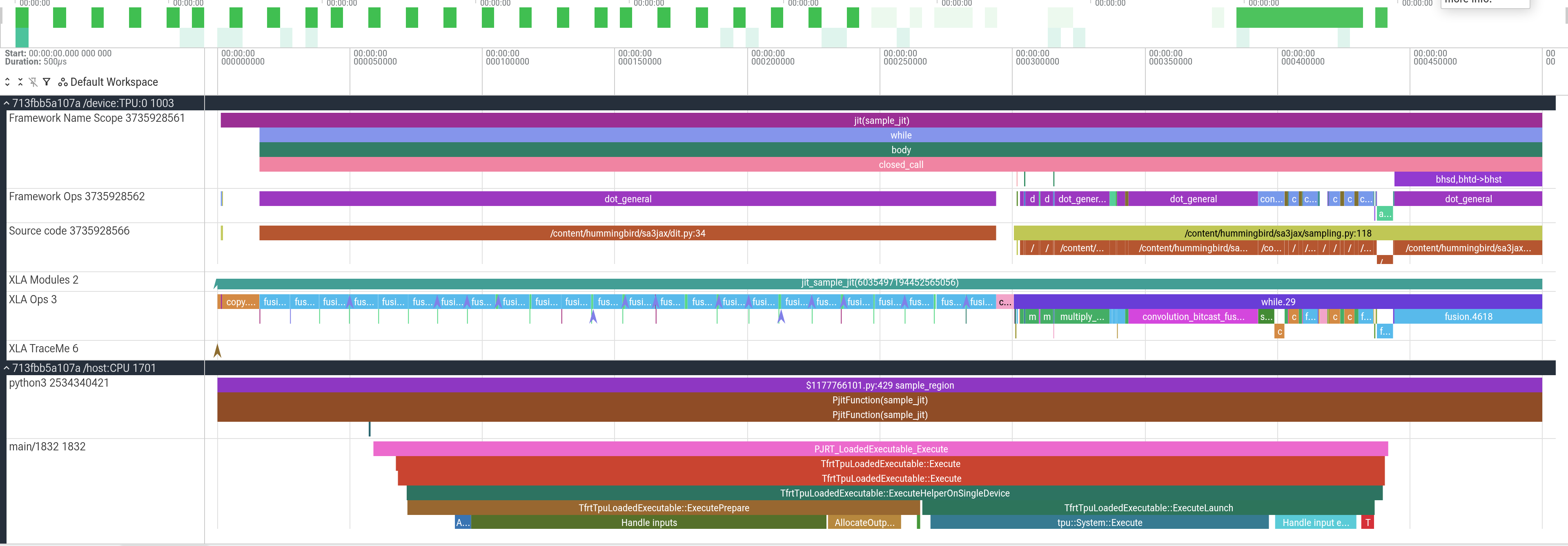

At 500 µs the block structure resolves. This is the figure the XProf capture buys: Framework Name Scope shows jit(sample_jit) → while → closed_call, and the Source code track attributes the work to /content/hummingbird/sa3jax/sampling.py:118 — the scan body. /device:TPU:0 and /host:CPU are separate processes, which is what makes §4 a measurement.

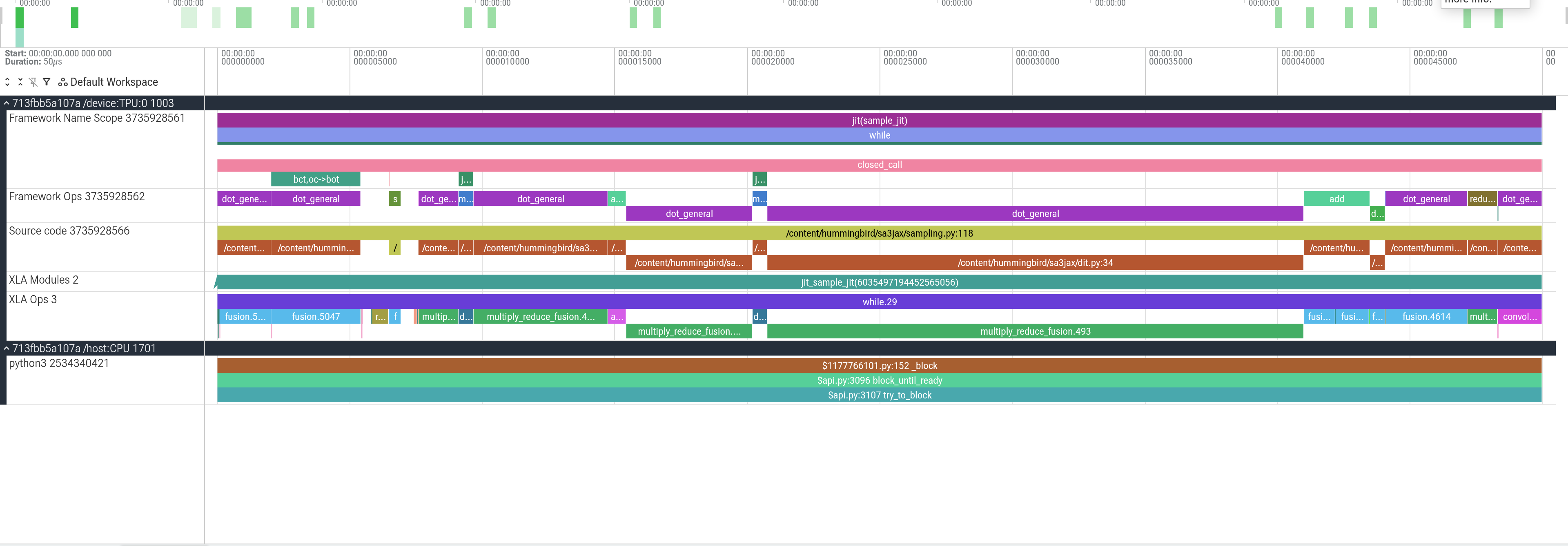

At 50 µs the individual kernels are named: dot_general and bot_oc->bot on the Framework Ops track, multiply_reduce_fusion.493 / fusion.5047 / fusion.4614 on XLA Ops, and the two Python frames that issued them — dit.py:34, the x @ weightᵀ inside _linear, and sampling.py:118, the lax.scan call. This is the attribution an HLO name alone cannot give.

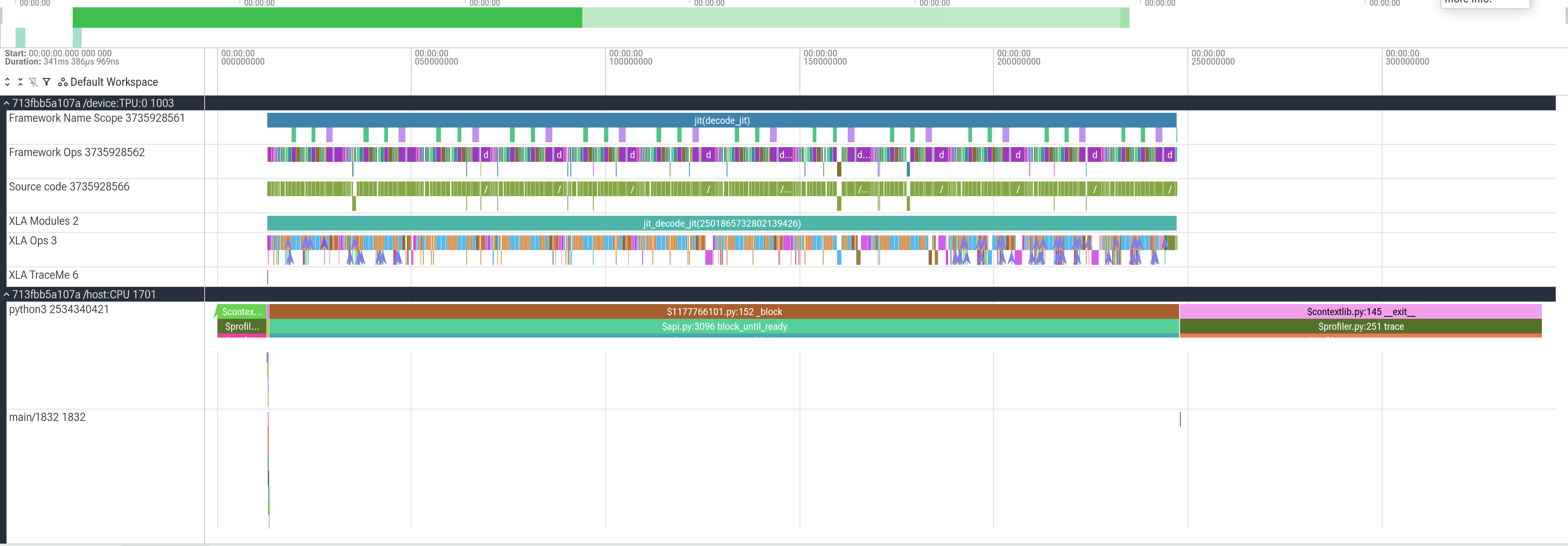

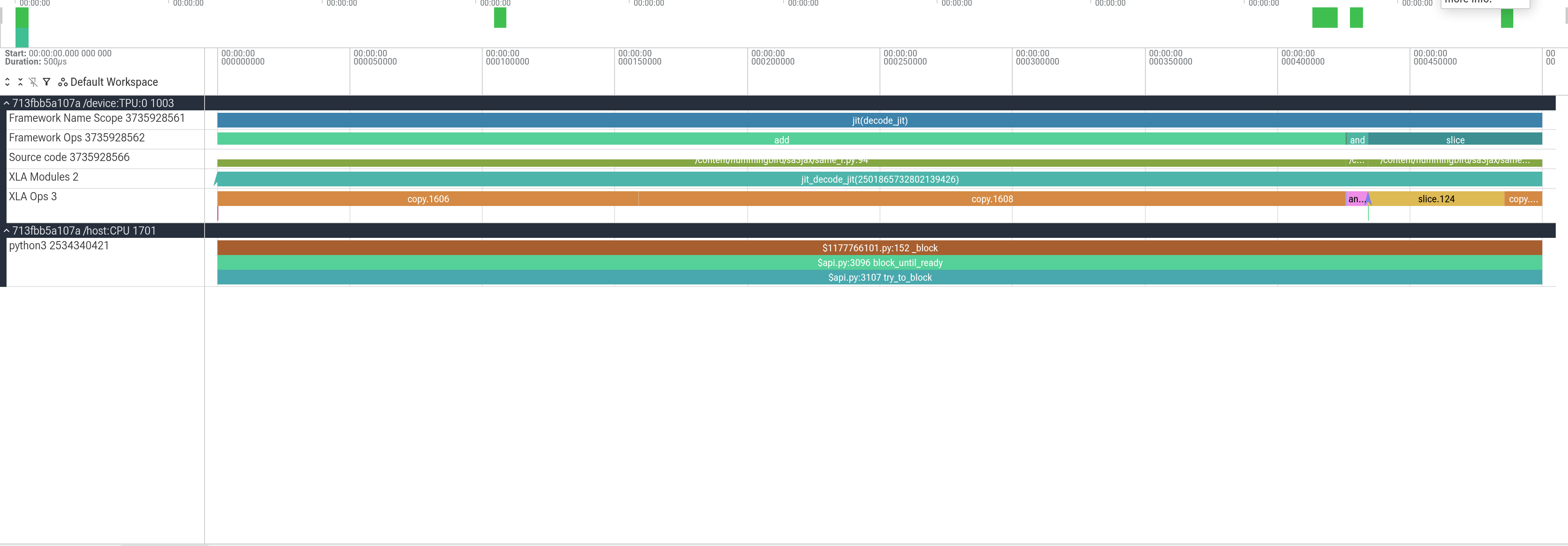

The SAME-L decoder, which is 236 ms — larger than the whole DiT scan.

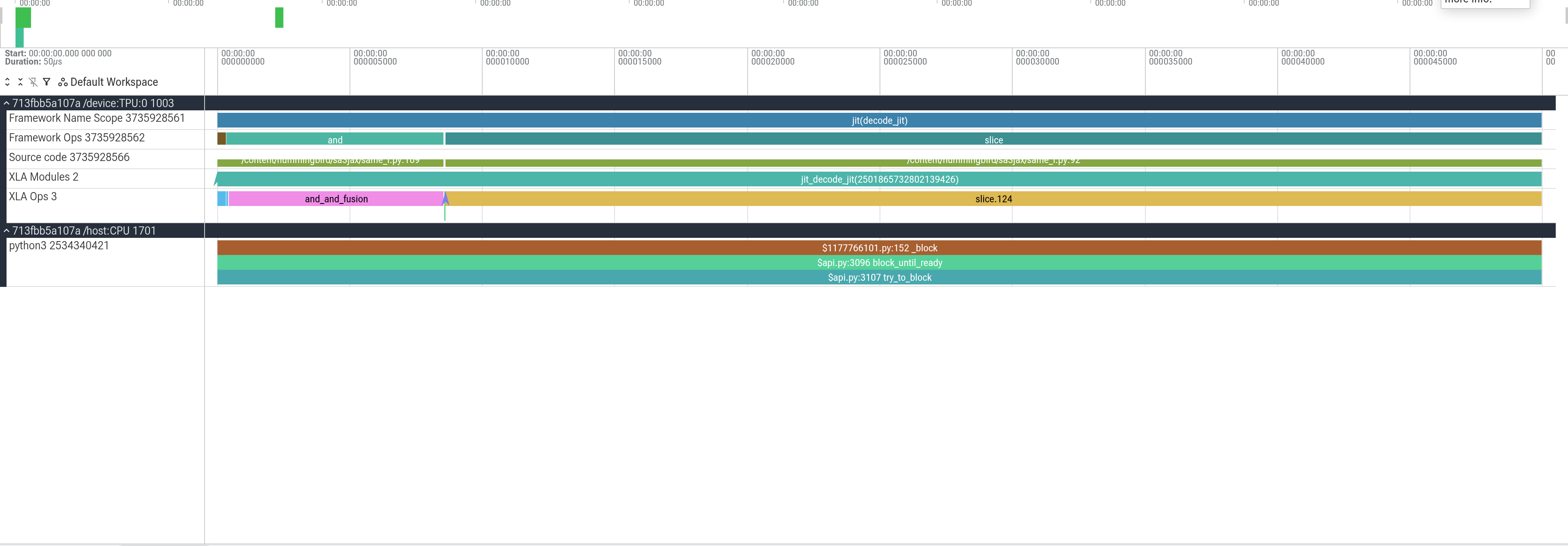

The decoder at 50 µs: and_and_fusion, slice.124, and two Python frames — same_l.py:109, the sliding-window mask |k − q| ≤ 2·stride, and same_l.py:92, the rotary embedding that feeds attention.

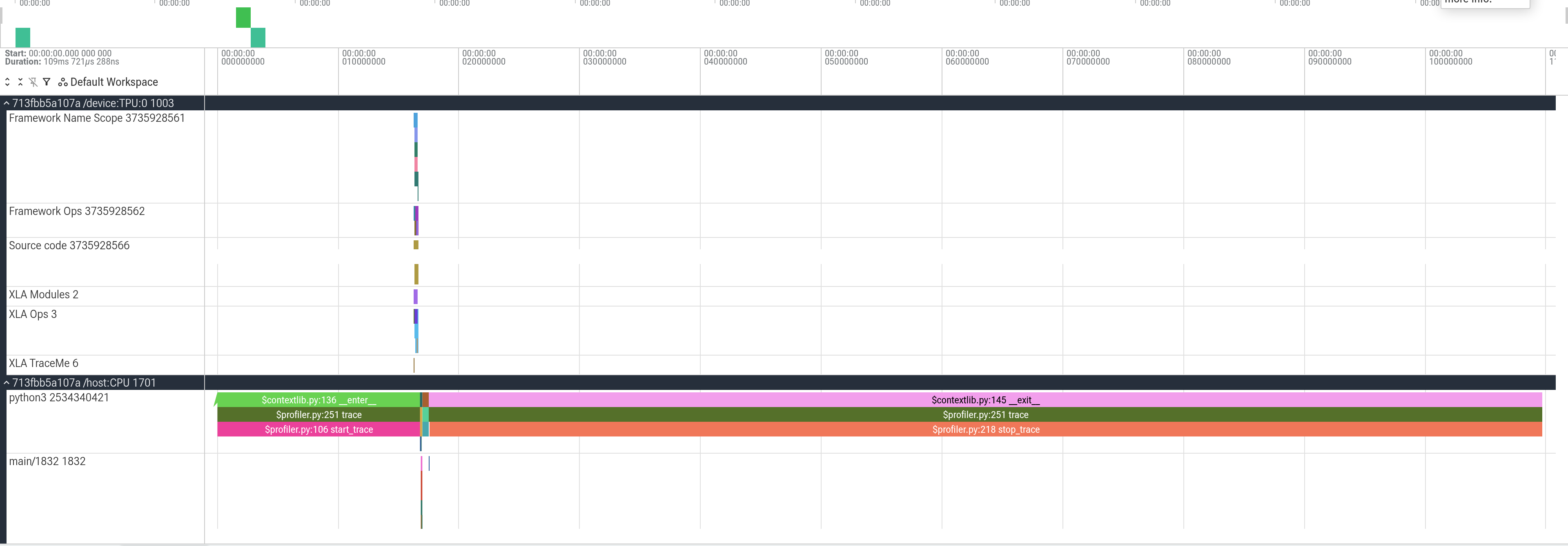

The text encoder, for contrast: 0.53 ms of device work inside a 110 ms window that is almost entirely host dispatch machinery. On the TPU this stage is not worth optimising.

6. The same GPU, two backends

§2 says the TPU is faster than the L4; it cannot say whether the port is the reason. So both backends ran on one L4, same checkpoint, same prompt, same seed, in separate containers — JAX does not return GPU memory after clear_caches(), so a single container that runs JAX first OOMs torch's weight load.

The port is faster than the official runtime on the same GPU, and the reason is structural rather than numerical: torch pays a fixed per-layer cost the JAX port fuses away. The clearest evidence is in torch's own numbers — going from T=388 to T=1358 latents (3.5× the sequence) costs its DiT only +44 % (0.988 → 1.418 s), because at these sizes a torch DiT layer is dominated by per-layer launch and mask-rebuild overhead rather than by arithmetic. Our fused 24-layer scan spends that time on FLOPs instead. The same effect shows at 5 s, where torch still needs 1046 ms against our 264 ms.

The one module where torch wins is the DiT itself at 120 s (1418 vs 1517 ms, 7 %), where Flash Attention and fp16 pull ahead once the sequence is long. Everywhere else the fused JAX graph wins, and the decode win is partly the chunked/unchunked difference and should not be read as a pure kernel result.

7. Scaling with duration

Three separate effects are visible. The TPU's advantage shrinks with duration from 23.8× to 6.3× because the short-duration rows are dominated by each runtime's fixed cost, and the TPU's is smallest. The port's advantage over torch on the L4 also shrinks — 3.97× at 5 s to 1.15× at 120 s — for the same reason, and it means the honest summary is "the port is much better at short renders and roughly level at long ones", not a single ratio. And the peak VRAM is flat across durations on the GPU side (5168 / 5186 / 5213 MiB for torch), so nothing here is capacity-bound.

8. What to optimize next

1. Make prepare_static device-resident. It is 9.4 ms of the 405 ms — 2.3 % — and, per §4, most of the request's device idle. It is eager only because it validates local_add_cond with a host sync; for the all-zero (text-to-audio) case that check can be an assertion at trace time.
2. The decoder, not the DiT, is the second target on TPU. 236 ms — 1.56× the DiT — and growing faster with duration than the DiT does (16.8× from 5 s to 120 s against 7.2×). A chunked SAME-L path would cut activation memory and may fuse better.
3. Compile is the cold-start cost, not the run. The shipping jit boundary compiles in 89–112 s on v6e-1; a persistent XLA cache makes subsequent processes skip it, which is what makes a kept Colab session worth its cost.
4. Wire medium into pipeline. The single highest-value change is not performance at all: pipeline.generate(cfg=MEDIUM) currently returns wrong audio without raising.

9. What this does not establish

• No quality or parity claim. These runs measured latency; no audio was scored, and no fixture comparison was made on medium. A fast wrong answer and a fast right answer are indistinguishable here.
• No scale-up. One v6e-1 chip, no mesh, no sharding. Nothing about 8 chips follows from this.
• Not like-for-like across frameworks. Chunked vs unchunked decode and fp16+FA2 vs bf16 are differences in what was computed, stated in §1 rather than normalised away.
• Torch's short-duration rows carry a real error bar. Across three L4 runs, 120 s was reproducible (2.31–2.54 s) but 5 s and 30 s varied 0.76–1.05 s and 0.98–1.27 s.
• The trace windows are profiler-inflated. The traced generate iteration measured 2627 ms against a 405 ms warm call. The traces are used for structure and device-busy attribution, and the busy column is quoted because it independently reproduces the harness latency — never for latency itself.

Where the numbers come from

TPU runs are reproducible to 0.7 %: the two independent 120 s runs gave 402.3 ms and 405.0 ms. Parameter counts confirm the checkpoint loaded is the one intended — DiT 1,453,170,192, conditioner 198,144, text 281,580,288 — and the decoder's 426,063,089 resolves a documented ambiguity: new_tokens is stored (1, 1, 1536), not (1, 16, 1536).

Four engineering notes worth keeping, each of which cost a wrong figure first.

The conversion is the Sail gist's, verbatim — one xspace_to_tool_data([path], "trace_viewer@", {}) call and a gzip.compress. Verified against the gist's own code on the same .xplane.pb: identical event count, identical event-name multiset, identical process_name metadata.

Its output is not byte-reproducible, so a digest is not an identity check. Two calls on the same input — even within one process — permute stack-frame ids and HLO op names (%copy.1703 ↔︎ %copy.1808) while preserving length and every op name. Compare traces by their event-name multiset, never by hash.

The screenshots are produced by rewriting the trace to the window, because deep-link zoom does not take effect in headless Chromium. The crop must keep metadata events: they carry no timestamp, so a naive clip drops every process_name, and Perfetto then reports hundreds of unmatched-track import errors and labels the tracks "Process 1003". Preserving them is what puts /device:TPU:0, /host:CPU and the Source code track in the figures above.

Zoom depth is set in microseconds, not as a fraction of the stage, and the reason is the number in §5: 600 ops/ms on the DiT means a 20 ms window cannot label anything. Size the window so the slices are wide enough to carry text, or the figure looks like a texture.
